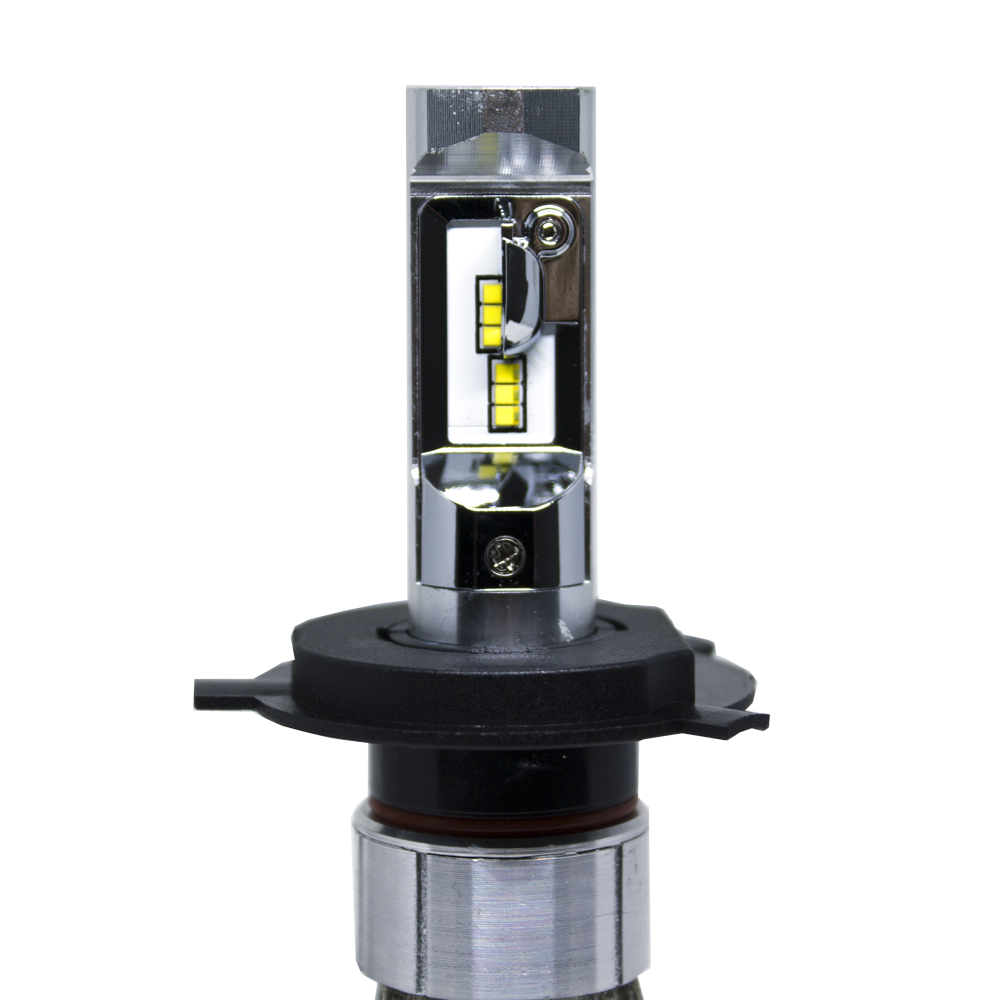

LUMENS – H4 Bulb – ULTRA LED Conversion – UBH4
Next-generation LED lights provide light output comparable to HID Xenon conversions without glare. More than twice the brightness of halogens. Instant full brightness with no warm-up time. The Plug ‘n’ Play design eliminates the need for harnesses and larger resistors during installation. PCBBs allow for maximum installation flexibility. The one-piece unibody core ensures maximum heat dissipation from the LEDs to the PCBBs.
Description
Design
The LED alignment replicates that of a halogen bulb for optimal light output in a reflector housing.
The use of a fiber to conduct heat directly from the LEDs to the 6 PCBBs keeps the LEDs cool for a longer lifespan. Utilizing 6 PCBBs compared to 4 PCBBs (most competitors) adds an additional 50% surface area for heat dissipation.
Pure copper sliced belts (PCBB) conduct heat better than copper-clad aluminum (CCA) belts (used by most competitors).
Specifications
• Number of LEDs: 6 units per beam
• LED Power: 35W per bulb
• Current: 2.8 ± 0.2A
• Voltage: 6 – 18V
• Output: up to 4000lm / 5600lx
• Temperature: -40°C ~ +80°C
• Material: 6063 Aluminum
• Color Temperature: 6000K Pure White
Additional information
| Type d'ampoule | For Headlights |
|---|---|
| Voltage | 6-18V |
